MAPCONTINENTS

The MAPCONTINENTS function overlays map boundaries on a map in a graphics window. By default the function draws the continental outlines.

Example

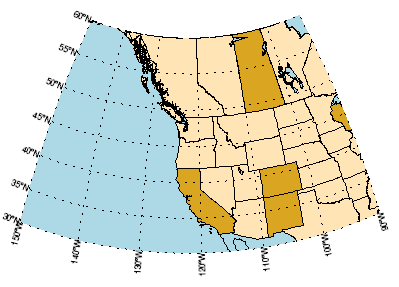

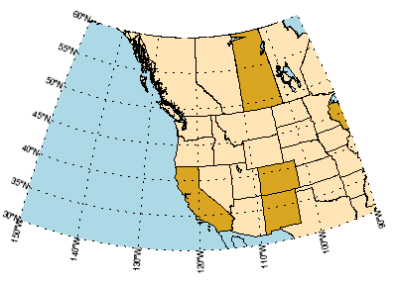

The following lines create the map shown at the top of this topic.

; Set up the map projection

map = MAP('Orthographic', $

   LIMIT = [30, -150, 60, -90], $

   CENTER_LATITUDE = 48, $

   CENTER_LONGITUDE = -122, $

   FILL_COLOR = "light blue")



; Change some grid properties

grid = map.MAPGRID

grid.LINESTYLE = "dotted"

grid.LABEL_POSITION = 0

grid.FONT_SIZE = 14



; Insert some map boundaries.

m1 = MAPCONTINENTS()

m2 = MAPCONTINENTS(/USA, COMBINE = 0, $

   FILL_COLOR = "MOCCASIN")

m3 = MAPCONTINENTS(/CANADA, COMBINE = 0, $

   FILL_COLOR = "MOCCASIN")

m4 = MAPCONTINENTS(/LAKES, FILL_COLOR="light blue")



; Retrieve some states and change their color.

cstates = MAP['USA/*C*']

FOREACH c,cstates DO c.FILL_COLOR="goldenrod"

MAP['Saskatchewan'].FILL_COLOR = "goldenrod"

Additional Examples

See Map examples for additional examples using the MAPCONTINENTS function.

Syntax

graphic = MAPCONTINENTS( [Filename] [, Keywords=value] [, Properties=value])

Keywords

Keywords are applied only during the initial creation of the graphic.

[, /CANADA] [, COMBINE=0] [, /CONTINENTS] [, /COUNTRIES] [, /DEVICE] [, /HIRES] [, /LAKES] [, LIMIT=array] [, /NOCLIP] [, /RIVERS] [, /USA]

Properties

Properties can be set as keywords to the function during creation, or retrieved or changed using the "." notation after creation.

ANTIALIAS, CLIP, COLOR, FILL_BACKGROUND, FILL_COLOR, HIDE, LINESTYLE, NAME, THICK, TRANSPARENCY, UVALUE, WINDOW

Methods

Close

ConvertCoord

CopyWindow

Delete

Erase

Order

Print

Refresh

Rotate

Save

Scale

Select

Translate

MapForward

MapInverse

Return Value

The MAPCONTINENTS function returns a reference to the MapContinents object. Use the returned reference to manipulate the graphic after creation by changing properties or calling methods.

Arguments

Filename

An optional argument giving the name of a shapefile. If this argument is present, then the file will be read and graphics objects will be created for the contained shapes.

Keywords

Keywords are applied only during the initial creation of the graphic.

CANADA

Set this keyword to draw the outlines of the Canadian provinces. This keyword is ignored if Filename is used.

COMBINE

By default all of the outlines are combined into a single polygon (COMBINE=1). Set this property to 0 to create each outline as a separate object. This is slower to draw, but allows each individual outline to be retrieved and modified. See the example above for the use of COMBINE=0.

CONTINENTS

Set this keyword to draw continental outlines. This is the default behavior for MAPCONTINENTS if no other keywords (like /CANADA, /USA, etc.) are passed in, and is provided only for completeness. This keyword is ignored if Filename is used.

Note: Use the HIRES property in conjunction with the CONTINENTS keyword to draw high-resolution continental outlines.

COUNTRIES

Set this keyword to draw the country outlines. This keyword is ignored if Filename is used.

HIRES

Set this keyword to 1 to use high-resolution boundary data. This keyword applies only to the CONTINENTS and USA keywords.

Note: Creating a high-resolution map of a large area is a resource-intensive (slow) process. It is recommended that you only use the HIRES keyword for relatively small regions of the globe.

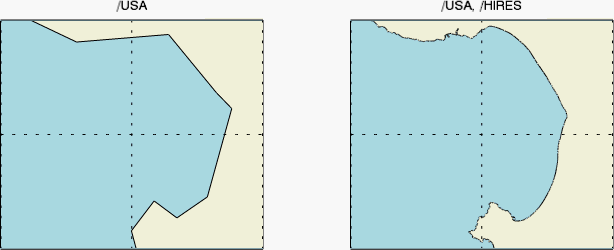

The following example draws California's Monterey Bay in both low and high resolution.

map1 = MAP('Geographic', $

  LIMIT=[36.547178, -122.207183, 36.990214, -121.7], $

  FILL_COLOR='light_blue', $

  WINDOW_TITLE='Monterey Bay, California', TITLE='/USA', $

  LAYOUT=[2,1,1])



; Change some grid properties.

grid1 = map1.MAPGRID

grid1.LINESTYLE = 'dotted'

grid1.LABEL_SHOW = 0



; Draw the coast in low-res

m1 = MAPCONTINENTS(/USA, FILL_COLOR='beige')



map2 = MAP('Geographic', /CURRENT, $

  LIMIT=[36.547178, -122.207183, 36.990214, -121.7], $

  FILL_COLOR='light_blue', $

  TITLE='/USA, /HIRES', LAYOUT=[2,1,2])



; Change some grid properties

grid2 = map2.MAPGRID

grid2.LINESTYLE = 'dotted'

grid2.LABEL_SHOW = 0



; Draw the coast in high-res

m2 = MAPCONTINENTS(/USA, /HIRES, FILL_COLOR='beige')





Note: The HIRES boundary data is taken from the GSHHG high-resolution dataset (GSHHS_h_L1). The data is used with the permission of the dataset authors, Paul Wessel (SOEST, University of Hawai'i) and Walter H. F. Smith (NOAA Geosciences Lab, National Ocean Service). Version information can be found in the readme file within the resource/maps/shape directory in the installation. More information can be found at http://www.soest.hawaii.edu/pwessel/gshhg/.

LAKES

Set this keyword to draw the outlines of major world lakes. This keyword is ignored if Filename is used.

LIMIT

Set this keyword to a four-element vector of the form [Latmin, Lonmin, Latmax, Lonmax] that specifies the boundaries of the clipping region. Shapes that lie outside of these limits will not be drawn. If the NOCLIP keyword is set, then the LIMIT property is ignored.

Note: The default behavior is to use the limits of the current map projection for clipping. You only need to set the LIMIT keyword if you intend to change the map limits later, and you want to ensure that all of the shapes will still be drawn.

NOCLIP

By default the MAPCONTINENTS function does not include shapes whose boundaries lie outside of the current map limits (or the value of the LIMIT property). If you later modify the map limit, these excluded shapes will appear to be missing. If you set the NOCLIP keyword to 1, then all of the shapes will be included in the map, even if they lie completely outside of the map limits.

RIVERS

Set this keyword to draw lines representing the major world rivers. The FILL_BACKGROUND and FILL_COLOR properties are ignored for this case. This keyword is ignored if Filename is used.

USA

Set this keyword to draw the outlines of the United States. This keyword is ignored if Filename is used.

Note: Use the HIRES property in conjunction with the USA property to draw high-resolution state outlines.

Properties

ANTIALIAS

By default anti-aliasing is used when drawing lines. Set this property to 0 to disable anti-aliasing.

CLIP

Set this property to 1 to clip portions of the graphic that lie outside of the dataspace range, or to 0 to disable clipping. The default is 1.

COLOR

Set this property to a string or RGB vector that specifies the color of the outlines. The default is "black".

FILL_BACKGROUND

Set this property to 1 to fill the outlines, or to 0 to turn off the fill.

FILL_COLOR

Set this property to a string or RGB vector that specifies the fill color. If this property is specified then FILL_BACKGROUND is automatically turned on.

HIDE

Set this property to 1 to hide the graphic, or 0 to show the graphic.

LINESTYLE

Set this property to an integer or string specifying the line style for the outline.

The following table lists the index values and strings you can use with this property.

Index

Property

Description

0

'solid_line', '-'(dash)

solid line

1

'dot', ':'(colon)

dotted

2

'dash', '--' (double dashes)

dashed

3

'dash_dot', '-.'

dash dot

4

'dash_dot_dot_dot', '-:'

dash dot dot dot

5

'long_dash', '__' (two underscores)

long dash

6

'none', ' ' (space)

no line

You can also set the line style to a two-element vector, [repeat, bitmask], specifying a stippling pattern. The repeat indicates the number of times that individual bits in the bitmask should be repeated. (That is, if three consecutive 0’s appear in the bitmask and the value of repeat is 2, then the line that is drawn will have six consecutive bits turned off.) The value of repeat must be an integer between 1 and 255. The bitmask indicates which pixels are drawn and which are not along the length of the line. The bitmask should be specified as a 16-bit hexadecimal value. For example, [2, 'AAAA'X] describes a dashed line with very short dashes of length 2 bits each.

NAME

A string that specifies the name of the graphic. The name can be used to retrieve the graphic using the brackets array notation. If NAME is not set then a default name is chosen based on the graphic type.

THICK

Set this property to a value between 0 and 10 that specifies the thickness of the outlines. A thickness of 0 displays a thin hairline on the chosen device. The default value is 1.

TRANSPARENCY

An integer between 0 and 100 that specifies the percent transparency of the objects. The default value is 0.

UVALUE

Set this property to an IDL variable of any data type.

WINDOW (Get Only)

This property retrieves a reference to the WINDOW object which contains the graphic.

Version History

8.0

Introduced

8.1

Added the UVALUE property and the HIRES keyword

Added the following methods:: Delete, MapForward, MapInverse

8.2.3

Added the ability to use a stippling pattern for LINESTYLE.

See Also

!COLOR, MAP, MAPGRID, IDL Graphics Functions, Using IDL graphics
